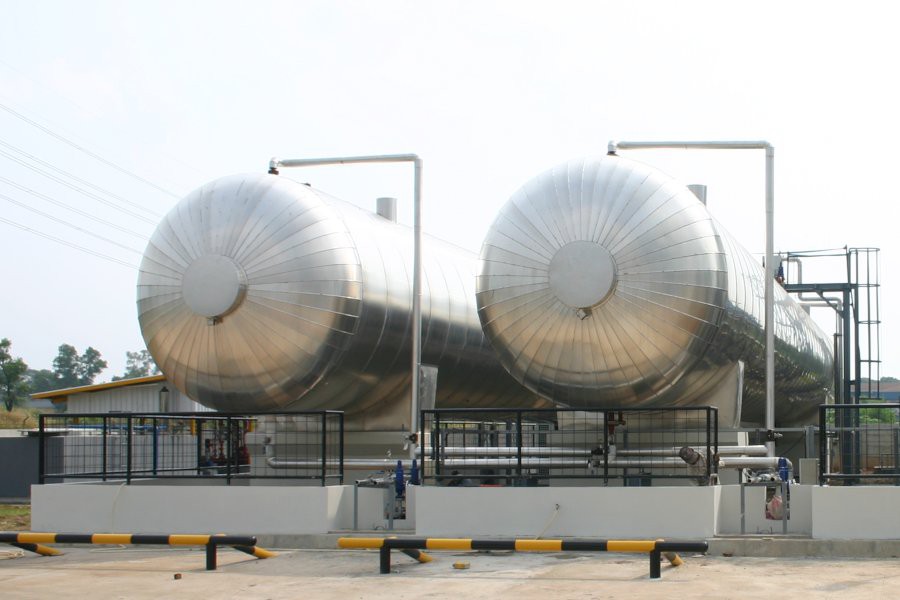

Liquid CO2 Storage Tanks with Liquid Level Indicator

The Pentair CO2 Storage Tanks with Liquid Level Indicator are designed to provide dry liquid CO2 storage capacity on site. They act as a buffer when CO2 consumption is lower than the liquid CO2 supply rate.


Learn more?

Bulk storage of liquid CO2

The CO2 storage tanks comprise:

  • Liquid level indicator (differential pressure type) with safety switch against overfilling
  • Load cells (option, for horizontal tanks)
  • Double-mounted safety relief valve with change-over valve
  • Necessary valves and fittings
  • Manhole for inspection

Connections for:

  • CO2 plant, liquid and gas
  • Truck filling station
  • Cylinder filling station
  • CO2 evaporator
  • Blow-off and drain

TECHNICAL DATA

Design temperature: -40/+40 °C
Seismic zone: UBC 2 (other zones available on request)
Design code: PED 97/23/EC (other approvals available on request)

SCOPE OF SUPPLY

  • Liquid level indicator (differential pressure type) with safety switch against overfilling
  • Load cells (option, for horizontal tanks)
  • Double-mounted safety relief valve with change-over valve
  • Necessary valves and fittings
  • Manhole for inspection
