Process Control
The Pentair Haffmans Keg Monitor, type KEG 2.0, accompanies other kegs through the washing process, assessing the washer's performance. The collected data is then analyzed by a Windows-based PC program, offering a comprehensive overview of the keg washing operation.
BENEFITS
- Cost Saving: Eliminates the need for superheated steam, optimizing energy consumption.
- Fast Charging: Wireless charging in under 10 minutes provides over 18 hours of operation.
- Low Maintenance: Requires minimal upkeep and easy calibration.
- Wireless Data Transfer: Bluetooth-enabled for seamless data communication.
- Customizable System: Adaptable to various keg sizes to meet specific needs.
-
Functional Description
-

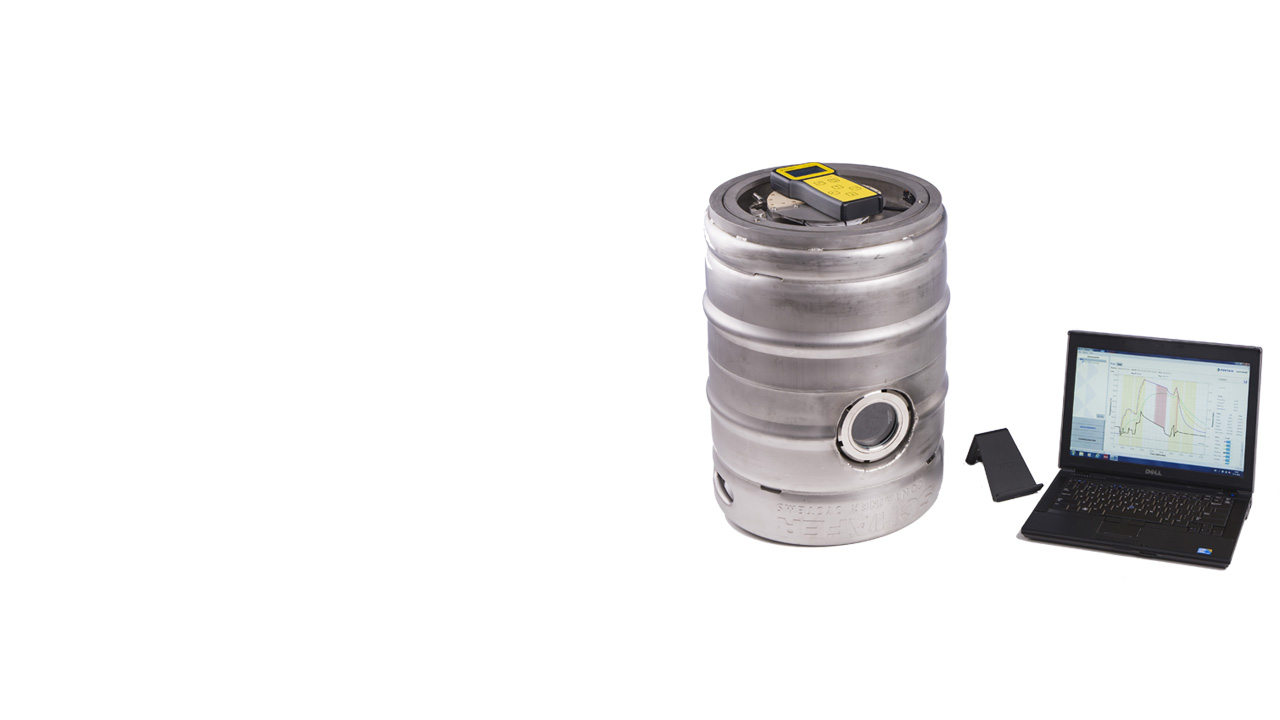

The Haffmans Keg Monitor, model KEG 2.0, includes a specially prepared keg, a handy or charger, and a dock station. It travels with other kegs through the washer, monitoring performance by measuring the temperature of incoming and outgoing products, the keg wall temperature, and internal pressure. The data logger also tracks the keg's position during cleaning.
After the washing process, data is wirelessly transferred from the handy to the dock, where it can be printed or uploaded to a PC. The software analyzes the data, checking for superheated steam, and displays results in both tabular and graphical formats for printing or storage.
-
CONFIGURATIONS
- Effortless setup and data transfer with no distance limitations between KEG Logger and PC.
ECONOMY - Configuration via PC and data transfer using the charger.
- Maximum 10-meter distance between KEG Logger and PC.
- Budget-friendly option ideal for small and craft operations.
STANDARD - Effortless setup and data transfer with no distance limitations between KEG Logger and PC.
DOWNLOADS
| Titel | Download PDF | |
| Product leaflet |
Haffmans Keg Monitor - KEG 2.0 |
Download |
| Product leaflet |
Haffmans Keg Monitor - KEG 2.0 (German) |
Download |
| Product leaflet |
Haffmans Keg Monitor - KEG - Retrofit Upgrade Package |
Download |
| Case study |
Grolsch Brewery |
Download |
| Product Overview Brochure |
Haffmans Quality Control Equipment |
Download |
| Technical documentation | Looking for operating instructions, installation manual, spare part list etc.? | Please, send us your request |
